Sensor data can be directly processed by a PC or any programmable device with a TTL or RS232 serial port. The transmission protocol is NMEA0183®.

SPECIFICATIONS

Cabling:
4 wires:
– Red: +12 VDC (9-16 VDC, 12mA)
– Blue: 0V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –

Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15°C (without icing) to +55°C

Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: +/-1°
Air temperature: +/- 1°C

NMEA0183® sentences:
IIMWV: Angle, Wind speed, Measurement validity
WIXDR: Air temperature
PLCJ: manufacturer’s data
PLCJE: manufacturer’s data
Transmission speed: Bd 4800

Complies with the European CE standard

Programmable configurations:
Angle correction in degrees
Responding time of speed and direction: 1, 2, 4, 8, 16 s
Speed unit in knots, m/s, km/h
Temperature unit in Celsius or Fahrenheit
NMEA® or specialised interface formats

COMPATIBILITY

Connection compatibility of the CV7-V:

NMEA0183® standard – Bd 4800
FURUNO©, RD30, RD33, depth sounders, radars, NavNet, NavNet2, NavNet3…
GARMIN©, all devices equipped with a “wind” window and an NMEA0183® input.
NKE Topline, TL25, GyroPilote, MultiGraph, NMEA ® input/Topline
SIMRAD: IS15 Wind, IS15 Expendeur, interface SimNet AT10
Navigation software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Seapro, Sodena, StatMETEO.
NASA, METEOMAN for terrestrial application
Compatible with all NMEA2000 devices, with our WindyPlug option.
B&G, FURUNO, GARMIN, HUMMINBIRD, LOWRANCE, RAYMARINE, SIMRAD, etc.

DELIVERY CONTENTS

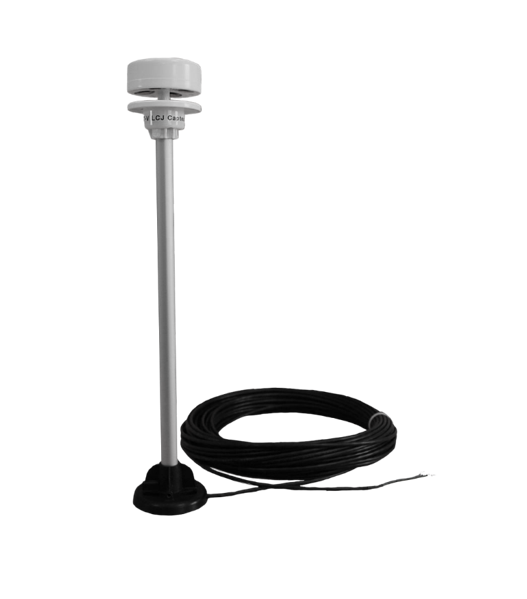

– Anemometer sensor CV7-V with 310 mm vertical stand
– Mounting Bracket
– 25 m cable – 4 X 0.22 mm²
– User and installation manual
– 2–year warranty, parts and labour, in our premises

Recommended retail price:
638.60 Euros exc. VAT
766.32 Euros incl. VAT
